How Much Do French Drains Cost To Install in 2026?

French drain installation costs $65 to $1,320 per linear foot in the Bay Area in 2026, depending on trench depth and site access. Projects range from $3,000 to $120,000, and the average Cardona Construction drainage project comes in around $20,000.

Roughly 60% of a French drain quote is excavation labor, not piping. Clay soil in the Bay Area is the reason two identical-looking yards produce very different numbers. Cardona Construction Inc. has installed French drains across Alameda and Contra Costa Counties for more than 40 combined years. In this post, we explain French drain installation pricing for Bay Area homeowners.

What Drives the Cost of a French Drain?

Three primary factors determine the final cost of a French drain installation in the Bay Area:

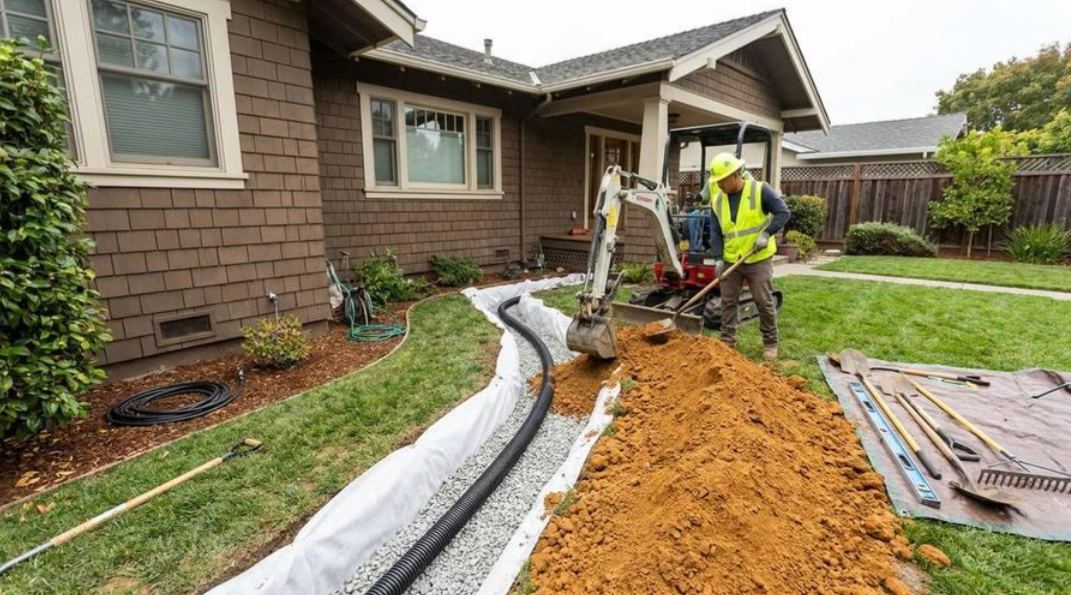

Excavation and Hauling

The biggest line item on a French drain invoice is the trench itself. Excavation, hauling, and backfill make up half to two-thirds of a Bay Area quote. Pipe, washed gravel, and filter fabric are the smallest part of the materials bill.

Bay Area Clay Soil

Bay Area clay soil adds real hours to the labor count. Clay is dense and sticky, so crews move roughly half as many feet per day as they would in sandy markets. That gap is why Bay Area French drain installation costs more per foot than the national average suggests. For an overview of how the system itself works, see our guide on what French drains do for Bay Area homes.

Site Conditions and Access

Installing a French drain in a flat yard with open access takes less time than a job on a hillside or in a tight side yard. Steep grades require additional shoring, and narrow side yards limit equipment access, forcing crews to hand-dig rather than use a trencher. Both conditions add hours to the job and push the final number higher.

2026 Price Ranges by Project Type

Pricing varies according to what the drain is protecting. The three most common Bay Area projects fall into clean ranges you can use to stress-test any bid.

• Shallow yard drains (1 to 2 feet deep): $65 to $250 per linear foot. Used to clear standing water from lawns and low spots. A 60-foot lawn drain runs roughly $4,000 to $15,000.
• Foundation-grade drains (3 to 5 feet deep): $155 to $585 per linear foot. Built to relieve hydrostatic pressure before water reaches the wall. An 80-foot perimeter drain runs roughly $12,500 to $47,000; at a typical 4-foot depth with machine access, it lands close to $20,000.
• Hillside or deep subsurface drains (6 to 10 feet deep): $335 to $1,320 per linear foot. Engineered for Berkeley Hills, Oakland Hills, and Orinda slope projects. Long, deep runs can reach $120,000, and anything deeper than 10 feet is quoted individually.

These ranges assume a proper system with a perforated pipe, washed drain rock, filter fabric, haul-off of the excavated soil, and a real outlet. Bids far below these ranges usually skip at least one of those, which often causes a French drain to fail within three years. For larger projects where drainage integrates with foundation work, see our guide on raising a house and replacing a foundation

Factors That Can Change Your Final Quote

Once the depth is set, four variables can still change your final price:

Site Accessibility

A yard accessible with a mini-excavator saves hours compared to hand-digging through a narrow side gate. On steep lots, crews sometimes carry excavated soil uphill by bucket. Access alone can nearly double the per-foot price: a hand-dug trench through a crawlspace or down a flight of stairs costs close to twice what the same trench costs in an open yard.

Restoration Costs

Replacing lawn is cheap; replacing stamped concrete or mature landscaping is not. Ask whether the quote includes such repairs or stops at the trench line. Cutting through concrete or pavers in the trench path typically adds $25 to $30 per linear foot, and sod, mulch, and plant restoration is usually priced separately.

Outlet Type and Permits

A daylight outlet at the back of the property is inexpensive; a storm-drain tie-in or a long, solid-pipe run to the curb is not. Plus, it triggers permits in cities like Berkeley and Walnut Creek. A solid discharge line to the curb runs about $75 to $85 per linear foot, plus coring through the curb.

Hidden Surprises in the Soil

Old fill, buried concrete, and roots can add a day of labor that no estimator sees from the surface. A reputable contractor names those assumptions in writing before work starts.

Frequently Asked Questions

Is a French drain cheaper than a sump pump installation?

Not always. Because most of a French drain's price is excavation, a full perimeter system often costs more than a sump pump, while a short, shallow yard drain may cost less. The two solve different problems. A French drain moves groundwater before it reaches the home; a sump pump removes water that already made it inside. Many Bay Area homes need both.

Can I get an accurate quote without an on-site visit?

Honestly, no. Phone estimates on French drains are unreliable because depth, access, soil, and outlet points only reveal themselves on site. Cardona Construction offers free on-site evaluations across El Cerrito, Berkeley, Oakland, and surrounding cities, so the bid reflects the actual yard.

What should a proper French drain installation include?

A complete install includes heavy-duty perforated pipe, washed drain rock, professional-grade filter fabric, a designed slope, a defined outlet, and full soil restoration. Anything less is more likely to clog within a few seasons. Proper installation also verifies how the system ties into existing foundation drainage or a city storm line.

Get an Accurate Quote on French Drain Installation

A Bay Area French drain quote reflects what your yard actually requires: depth matched to the problem, a trench that can move clay without collapsing, materials that won’t clog, and an outlet that meets city code. A $4,000 lawn drain and a $40,000 foundation-grade system do not compete. They solve different problems for different homes.

The next step is a site evaluation. Rene Cardona personally walks the property, explains what the water is doing, and produces a quote that matches the scope. To schedule a free consultation, contact Cardona Construction or call (925) 642-6349.
